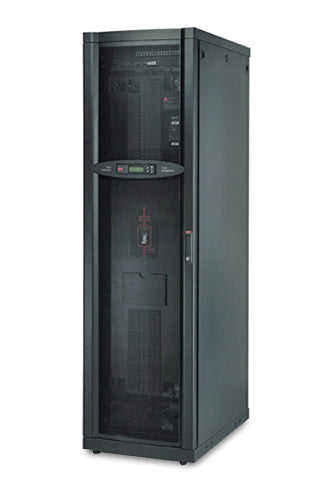

APC InfraStruXure power distribution unit (PDU) Black

APC InfraStruXure. PDU types: Monitored, Product color: Black. Nominal input voltage: 480 V, AC input frequency: 60 Hz, Nominal output voltage: 120 V. Certification: UL 60950. Width: 24" (610 mm), Depth: 36" (914 mm), Height: 81" (2057 mm). Package weight: 1036.2 lbs (470 kg), Package width: 36" (914 mm), Package depth: 48" (1219 mm)

InfraStruxure PDU 60kW 480V/208V

Designed to increase flexibility and agility of data center power distribution through a design that does not require a raised floor.

Load Test Port
Load test port provides simple connection for full testing of a Symmetra PX UPS

Local and web-based monitoring
Status available to customers both in the data center and remotely

Smallest footprint
Minimizes your real estate expenses

Circuit Breaker Panel
Provides breaker positions for distribution to racks and power zones

System mobility
PDU equipment can easily be relocated to accommodate a changing data center environment.

Wide Range of Applications
Configure-to-order process allows APC to configure, install, and test complete system before shipping

Transformer for Step-down or Step-up or Isolation
Step down transformer placed upstream of the UPS to avoid inrush current and saturation eliminating need to oversize transformer

Front-access servicing
Simplifies installation and maintenance while minimizing space requirements.
