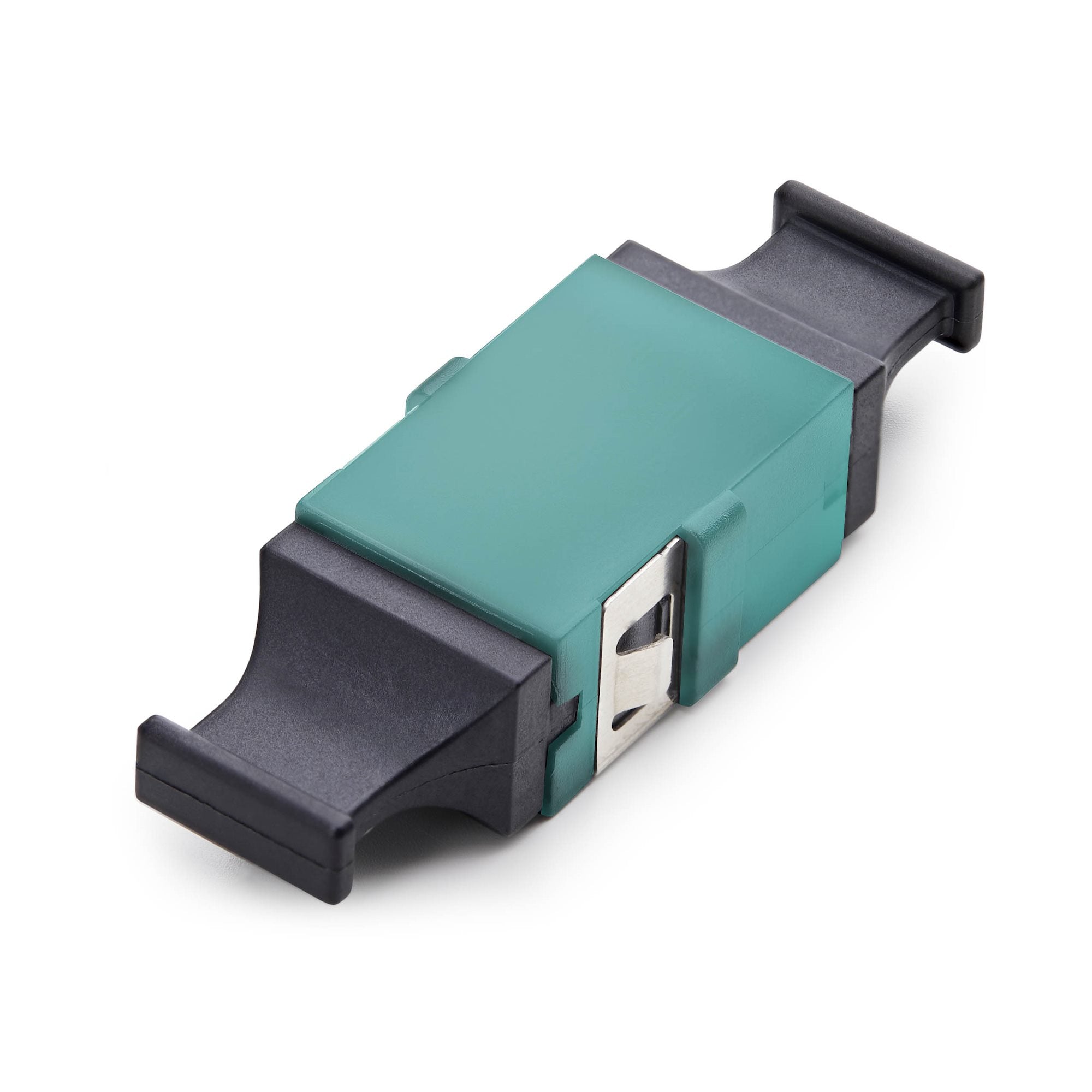

MPO/MTP COUPLER MULTIMODE MPO FIBER COUPLER KEY UP-KEY DOWN

StarTech.com MPOSMAPCAQCOUPLER. Connector type: MPO/MTP, Product color: Aqua color, Black, Fiber mode structure: Multi-mode. Compliance certificates: Trade Agreements Act (TAA), CE. Width: 0.677" (17.2 mm), Depth: 0.791" (20.1 mm), Height: 0.386" (9.8 mm). Quantity per pack: 1 pc(s), Package width: 4.72" (120 mm), Package depth: 3.54" (90 mm). Master (outer) case width: 16.9" (430 mm), Master (outer) case length: 13.2" (335 mm), Master (outer) case height: 15.7" (400 mm)

Connect two MPO/MTP fiber cables or establish multi-fiber connectivity on a fiber distribution panel

Extend a multi-fiber connection by connecting two MPO/MTP trunk cables with this MPO/MTP to MPO/MTP Coupler. The female-to-female fiber coupler supports both Single Mode and Multimode MPO/MTP connections, maintaining optimal signal integrity while achieving low insertion loss that exceeds industry standards.

Quick, Toolless Setup

The MPO/MTP Fiber Coupler is optimized for OS2/OS1 and OM3/OM4 fiber links. The coupler features toolless setup to simplify installation into fiber adapter panels and enclosures. Ideal for fast deployment in data centers, enterprise networks, and telecom applications.

Ideal for Fixed Installations

The MPO Coupler features a durable ABS housing and precision alignment structure for accurate multi-fiber mating, minimizing signal loss for long-lasting reliability and performance. The side metal mounting tabs enable fixed, secure positioning in high-density fiber installations.
