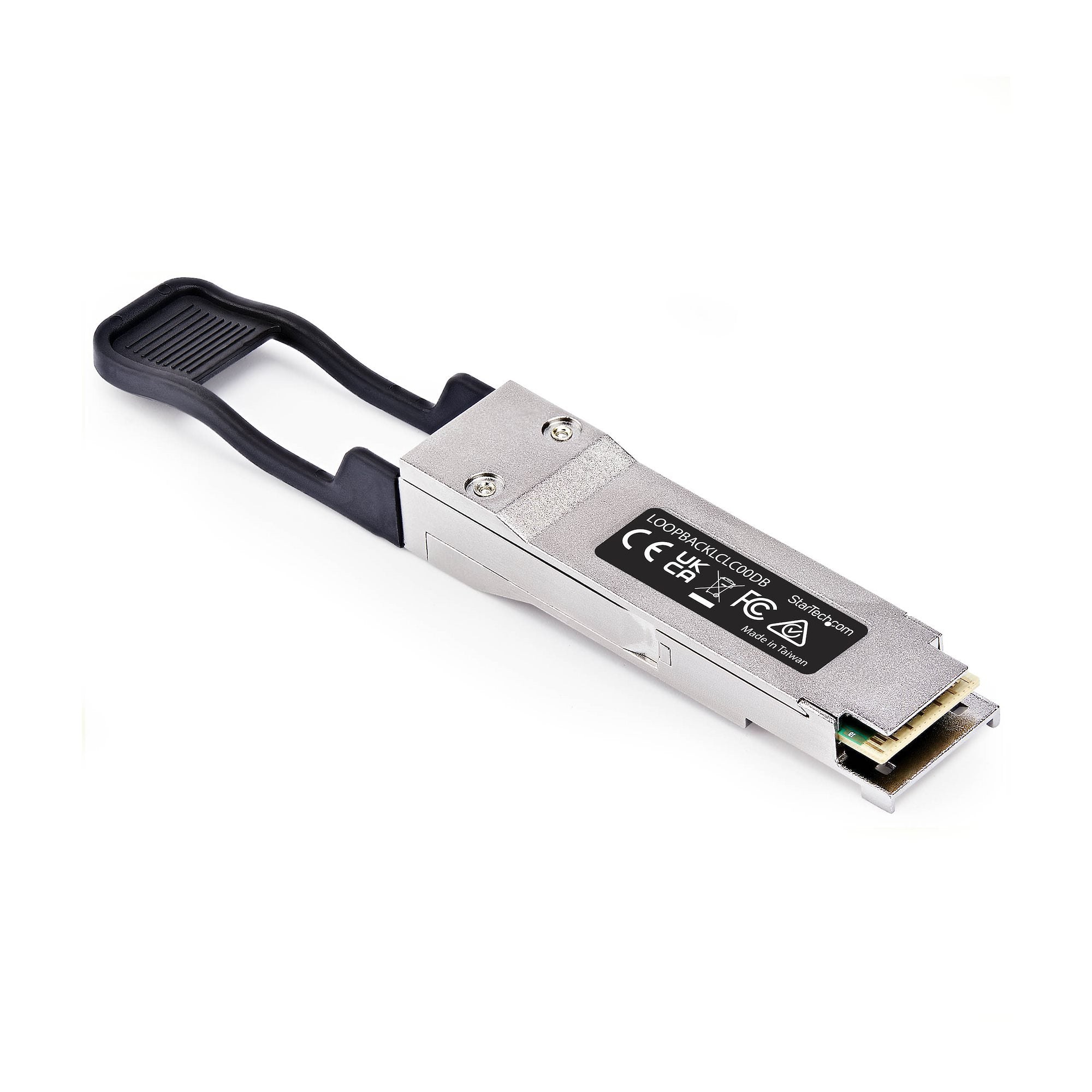

StarTech.com LOOPBACKPLUG100G network cable tester Fiber cable tester Silver

StarTech.com LOOPBACKPLUG100G. Product type: Fiber cable tester, Supported connectors: QSFP28, Test type: Loopback testing. Compliance certificates: Trade Agreements Act (TAA), RoHS, CE. Width: 0.74" (18.8 mm), Depth: 4.96" (126 mm), Height: 0.524" (13.3 mm). Package width: 3.74" (95 mm), Package depth: 0.787" (20 mm), Package height: 0.591" (15 mm). Master (outer) case width: 16.9" (430 mm), Master (outer) case length: 13.2" (335 mm), Master (outer) case height: 15.7" (400 mm)

Perform loopback testing and verify signal continuity across QSFP28 connections and port interfaces

This QSFP28 Loopback Module is designed for testing 100G ports in switches, NICs, and other QSFP28-equipped devices. It supports passive electrical loopback for verifying signal continuity, link stability, and port behavior without requiring active optics.

Test 100G QSFP28 Connections

The QSFP28 Loopback Adapter emulates 4-lane electrical testing for QSFP28 ports operating at 100Gbps, and supports 40GBASE and 100GBASE Ethernet. It is MSA compliant and meets IEEE 802.3 requirements for reliable performance and universal compatibility.

Accurate Signal Diagnostics

Perform electrical loopback testing for full 100G link verification. Ensure consistent signaling with 100Ω impedance and low jitter for stable, repeatable test results under real-world conditions.

For Enterprise Network Switches

Connect directly to QSFP28 ports on switches, routers, and NICs for inline port testing. Compact and low-power, it is an essential tool for network technicians and IT pros in data centers and edge or on-prem installations.
