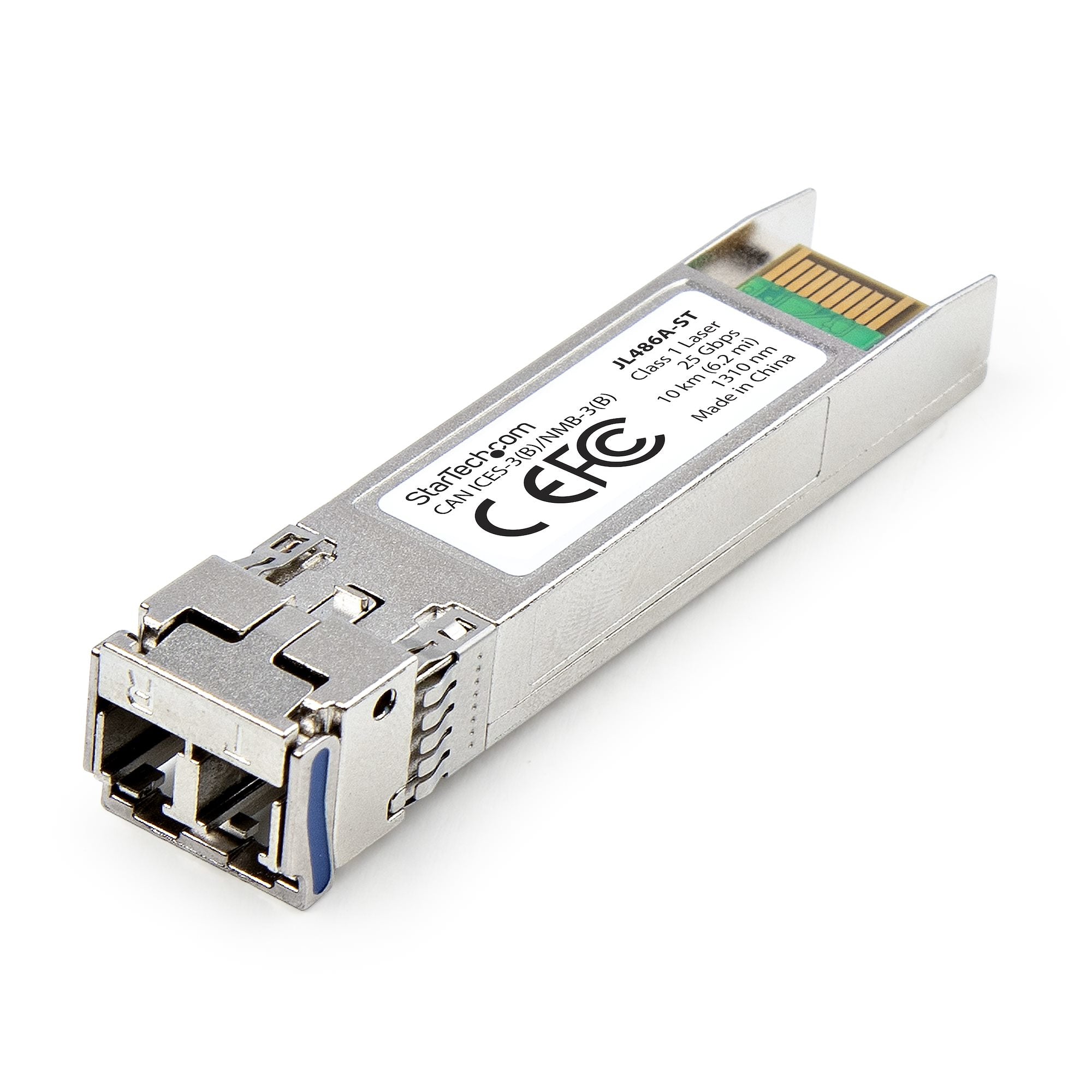

StarTech.com JL486A-ST network transceiver module Fiber optic 25780 Mbit/s SFP28 1310 nm

StarTech.com JL486A-ST. SFP transceiver type: Fiber optic, Maximum data transfer rate: 25780 Mbit/s, Interface type: SFP28. Product color: Silver, Mean time between failures (MTBF): 3292647 h, Brand compatibility: HPE. Power consumption (typical): 1.2 W. Compliance certificates: Federal Communications Commission (FCC), CE, RoHS. Width: 3.54" (90 mm), Depth: 4.53" (115 mm), Height: 1.22" (31 mm)

Enhance the networking infrastructure with this HPE®-compatible 25GBASE-LR optical transceiver, ensuring reliable performance and seamless connectivity at distances of up to 10km

This fiber optic transceiver is the direct equivalent to HPE® JL486A for 25Gbps connectivity up to 10km (6.2mi) over LC-terminated Single Mode Fiber (SMF) cable. The optical module has been programmed and tested for seamless integration with HPE® switches and routers to ensure compatibility and reliability.

Maximize Bandwidth

The 25GbE SFP28 excels in bandwidth-intensive tasks such as virtualization, efficient data migrations, high-performance storage, high-performance computing (HPC), future-proofing a network, and rapid online content uploads.

Technical Specifications

• 25GBASE-LR SFP28
• Data Rate: 25Gbps
• Fiber Type: Single Mode Fiber (SMF)
• Connector: LC
• Wavelength: 1310nm Tx/Rx
• Distances: Up to 10km (6.2mi)
• Supports Digital Diagnostics Monitoring (DDM/DOM)

Compatibility

This MSA-compliant SFP works with network equipment manufactured by HPE® and network equipment from manufacturers that accept uncoded optical modules.

Optimized Network Reach

The Long Range (LR) capability facilitates long-distance connections across or under large buildings, urban and rural network installations, and strategic singlemode fiber cable runs.
